Brief Introduction

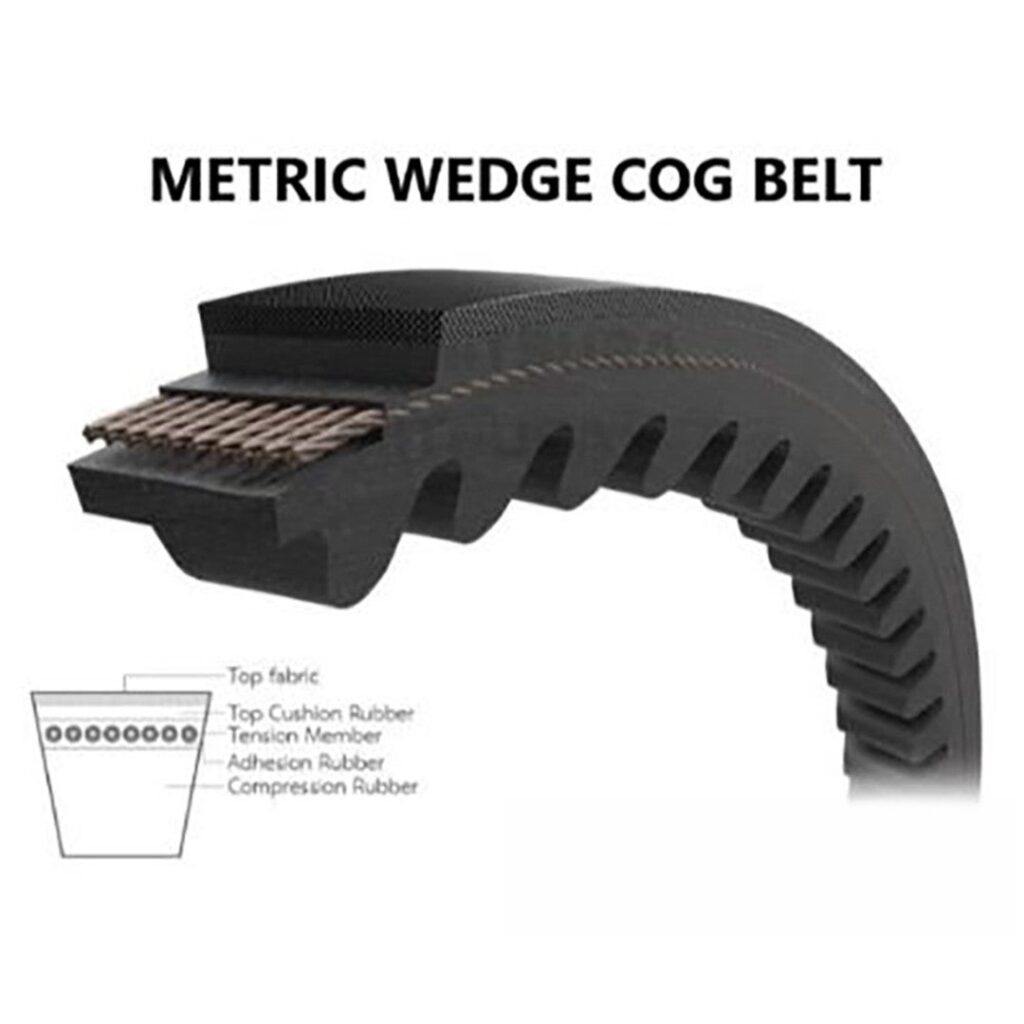

SANTE Raw Edge Cogged V-Belts are designed with a specialized flex-cogged rubber design and high-tensile cords reinforcement, featuring exposed rubber edges that directly contact pulleys for better grip. This structure delivers 30% higher power transmission than wrapped belts, reduces bend resistance for smaller pulleys, and excels in high-speed, high-load applications by optimizing both grip and efficiency.
Material:
CR/EPDM; POLYESTER//KEVLAR CORD
Applications:
- Automotive Industry: Used in engines, fans, and air conditioning compressors for efficient power transmission.
- Industrial Machinery: Ideal for high-speed drives, compressors, and conveyor systems, especially in applications with small pulley diameters.
- Agricultural Equipment: Suitable for tractors and harvesting machinery due to their high load capacity and durability.
- Material Handling: Effective in applications requiring high power transmission and resistance to wear.
- General Industrial Applications: Used in HVAC systems, pumps, and other machinery where high efficiency and reliability are required.
Sections:
SANTE offers a diverse selection of Raw Edge Cogged V-Belts in various profiles, including:
- Classical Cogged V-belt: ZX/AX/BX/CX/DX
- Wedge Cogged V-belt: XPZ/XPA/XPB/XPC
- Automotive V belt: AVX10/AVX13/AVX15/AVX17/AVX20/AVX22(REC&REL)
- Narrow raw edge cogged V-belt: 3VX/5VX/8VX
- BANDED BELTS: RAVX10/RAVX13XRAVX17/RAVX22; HAX/HBX/HCX; HXPZ/HXPA/HXPB/HXPC; R3VX/R5VX/R8VX
| Wedge Cogged V-Belts | ||||||
| Section | Top Width | Height | Angle | Belt Length Factor | Length
Standard |
Production Range |
| (mm) | (mm) | (degree) | (mm) | (mm) | ||
| XPZ | 10 | 8 | 40 | La= Lp+13 Lp=Li+37 La=Li+50 | Lp | 300~8000mm |
| XPA | 13 | 10 | 40 | La= Lp+18 Lp=Li+45 La=Li+63 | Lp | 300~8000mm |

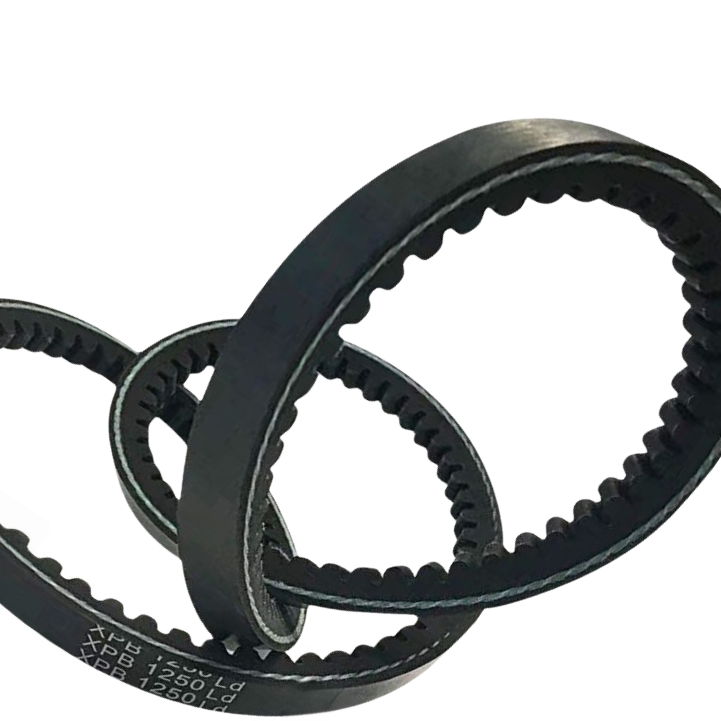

| XPB | 16.3 | 14 | 40 | La= Lp+28 Lp=Li+60 La=Li+88 | Lp | 300~8000mm |
| XPC | 22 | 18 | 40 | La= Lp+30 Lp=Li+83 La=Li+113 | Lp | 300~8000mm |
