Description

Brief Introduction:

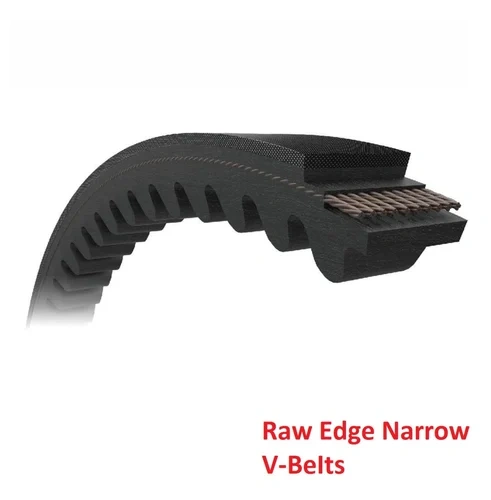

SANTE Raw Edge Cogged V-Belts are designed with a specialized structure that enhances their performance in high-speed and high-load applications. Unlike wrapped V-belts, raw edge belts have an exposed rubber edge that directly contacts the pulley, providing better grip and higher transmission capacity.

Narrow Cogged V-Belts
Section Top Width Height Angle Belt Length Factor     Length   Standard Production Range
(mm) (mm) (degree) (mm) (mm)

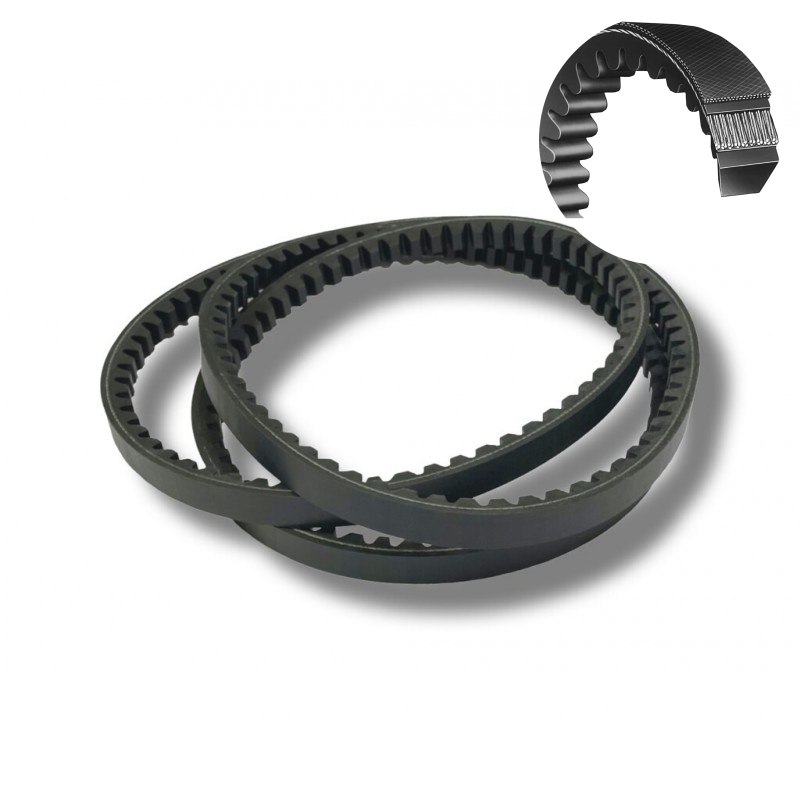

3VX(9JX) 9.5 8 40 La= Lp+13  Lp=Li+37  La=Li+50 La 300~8000mm

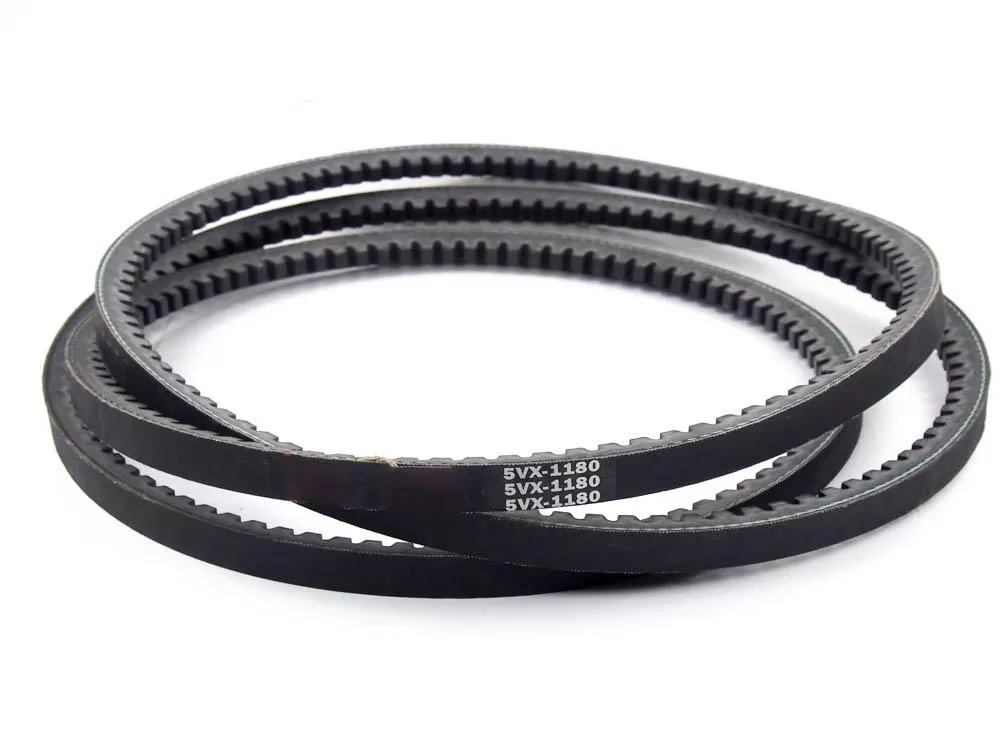

5VX(15JX) 16 13.5 40 La= Lp+28  Lp=Li+60  La=Li+88 La 300~8000mm
8VX(25JX) 25.5 23 40 La= Lp+30  Lp=Li+83  La=Li+113 La 300~8000mm
