Brief Introduction
SANTE Timing belts, featuring toothed design for synchronous power transmission, ensure precise motion control without slip, ideal for high-accuracy applications. Constructed with high-strength Glass Fiber tensile Cords and durable rubber(CR/HNBR), they deliver high transmission efficiency in automotive, robotics, and industrial automation systems. Designed for quiet, low-maintenance operation, these belts enable compact drive setups with consistent speed ratios across high-speed applications.
Available Material:
CR/HNBR
Applications:
SANTE Timing belts are widely used in various industries, such as automotive engines, where they connect the crankshaft and camshaft to ensure the precise opening and closing of engine valves. They are also used in automation production lines, office equipment, medical devices, sports equipment, robotics, logistics transportation systems, and many other fields to achieve stable and precise power transmission and motion control.
Sections:
SANTE offers a diverse selection of Timing Belts in various profiles, including:
- Automotive Timing belt
- MR/MY/YU/RU/ZA/ZB/ZAS/ZBS/S8M/RPP
- Industrial Timing belt:

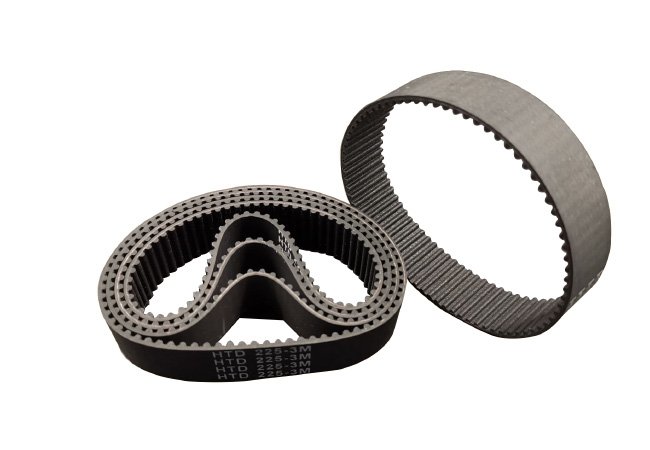

- HTD2M/3M/5M/8M/14M/20M

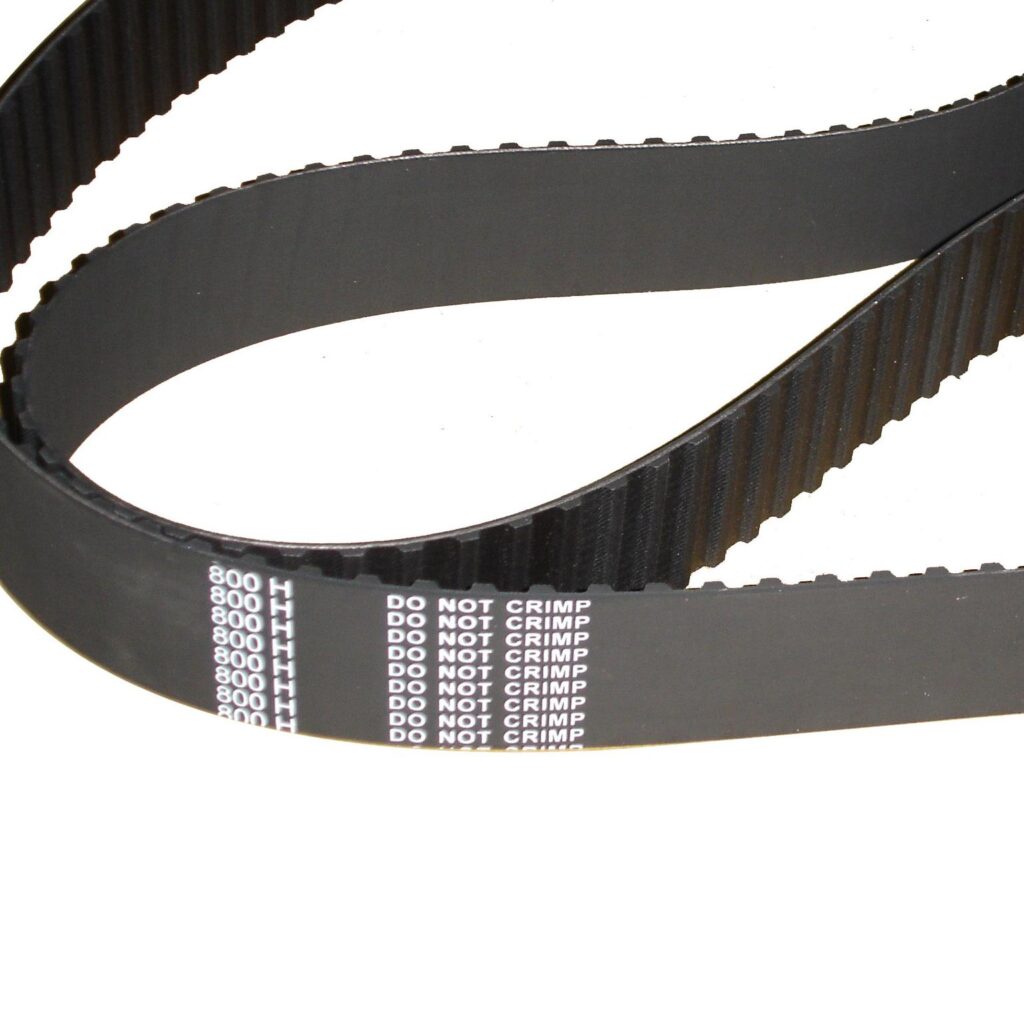

- MXL/XXL/XL/L/H/XH/XXH
- S2M/3M/5M/8M/14M
- RPP3M/5M/8M/14M

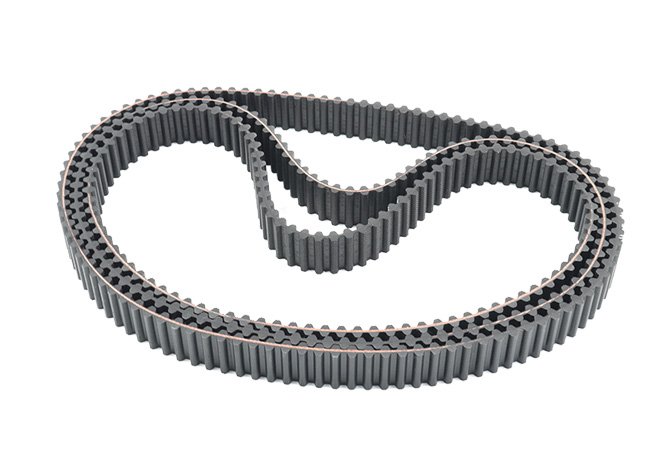

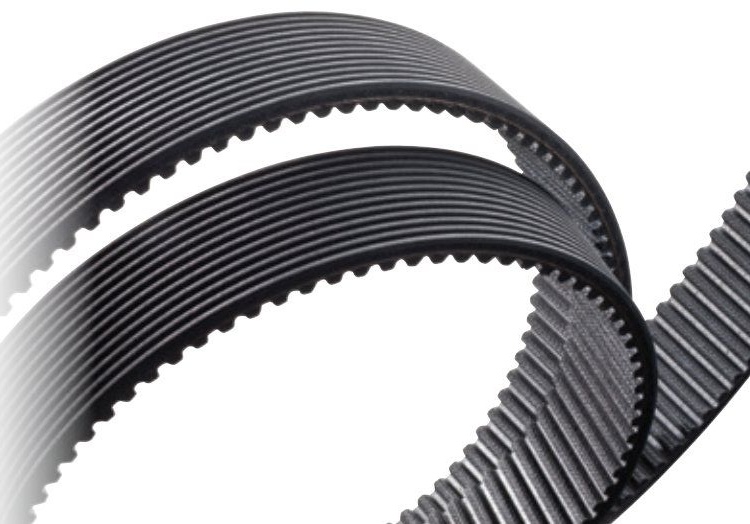

- Double sided Timing belt
(DXL/DL/DH/DXH /D3M/D5M/D8M/D14M/DS5M/DS8M/DS14M)

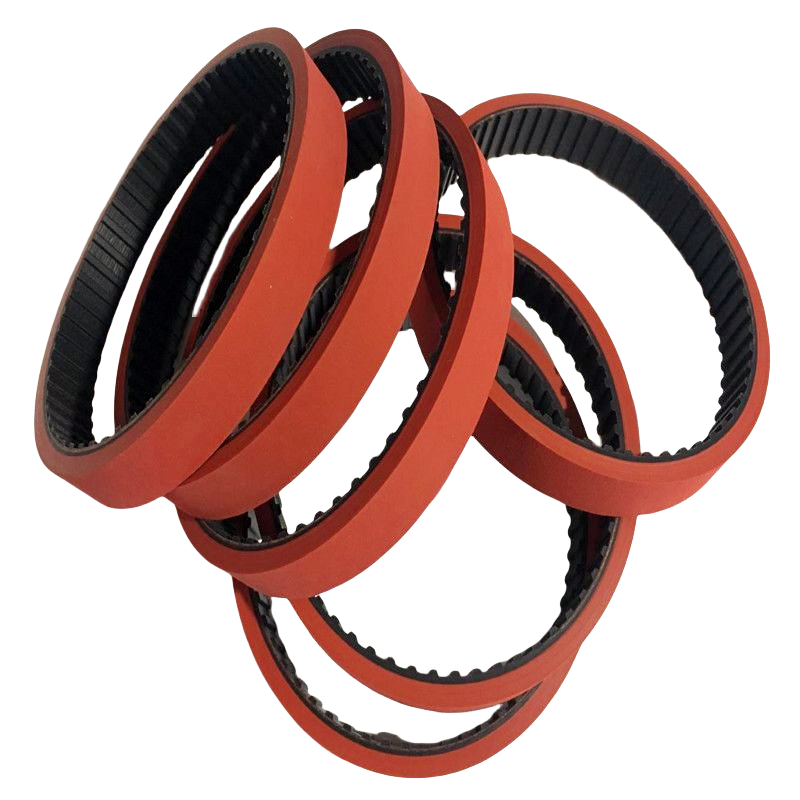

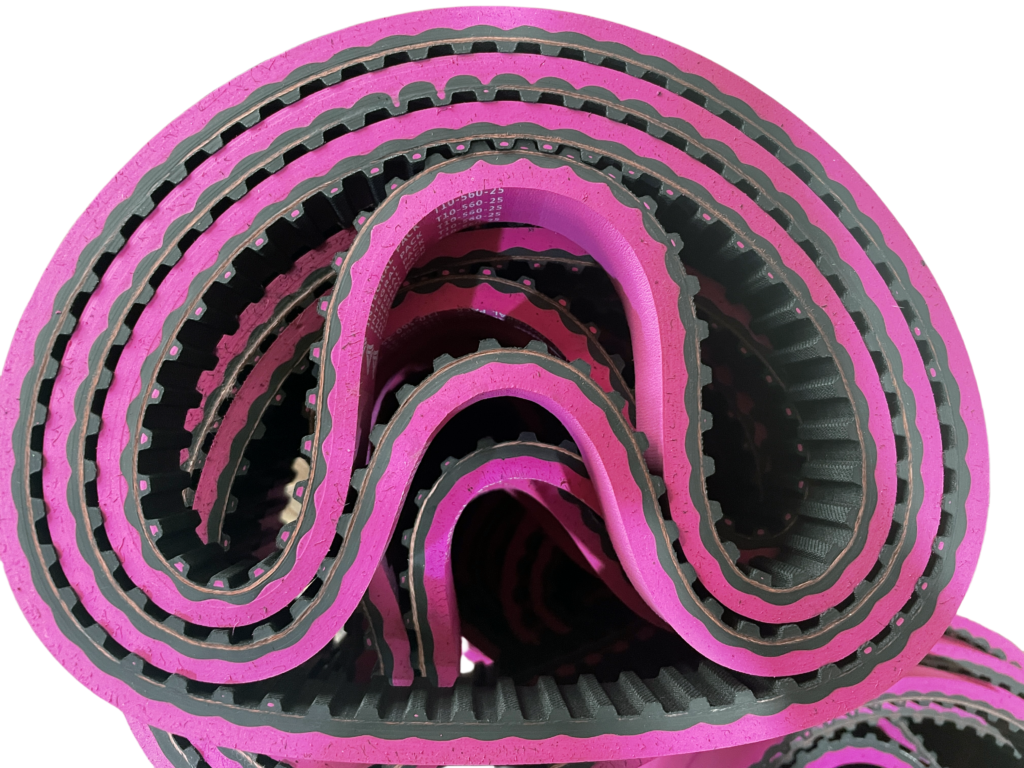

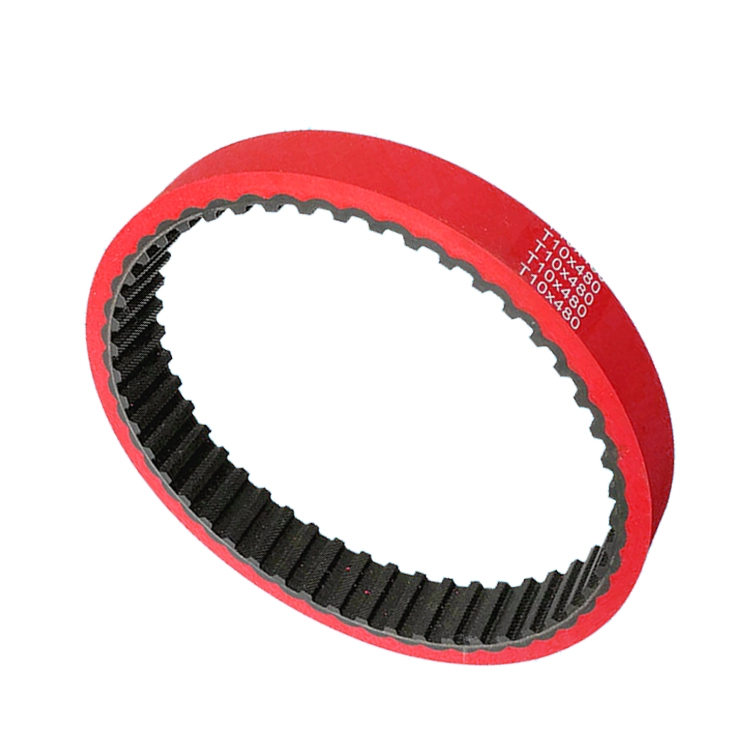

- Coated Timing belt
- Roller Mill belts
| Industrial Timing belt (HTD STD STS RPP HPPD) | |||
| Section | Pitch | Tooth height | Thickness |
| (mm) | (mm) | (mm) | |
| 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 |
| 5M | 5 | 2.06 | 3.8 |
| 8M | 8 | 3.36 | 6 |
| 14M | 14 | 6.02 | 10 |
| 20M | 20 | 8.4 | 13.2 |
| S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.3 |
| S4.5M | 4.5 | 1.71 | 2.81 |
| S5M | 5 | 1.91 | 3.4 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RPP 2M | 2 | 0.76 | 1.36 |
| RPP 3M | 3 | 1.15 | 1.9 |
| RPP 5M | 5 | 1.95 | 3.5 |
| RPP 8M | 8 | 3.2 | 5.5 |
| RPP 14M | 14 | 6 | 10 |
