Wedge Cogged V-Belts
Wedge Cogged V-Belts

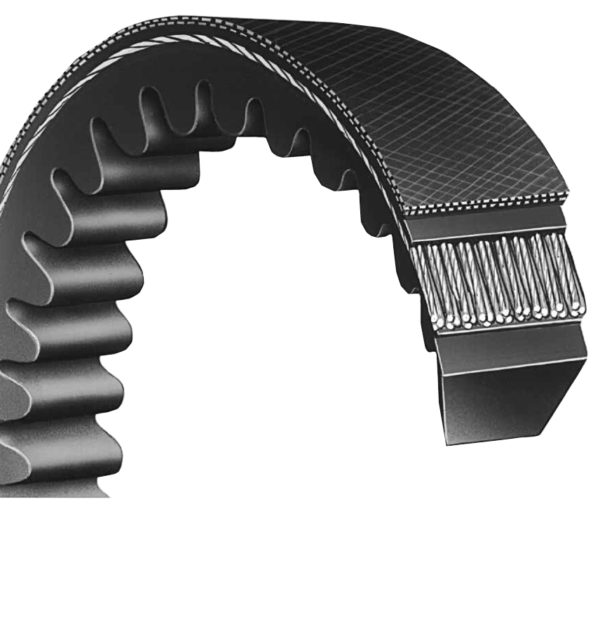

Classical Cogged V-belt

Categories: , , ,
Description

Brief Introduction:

SANTE Raw Edge Cogged V-Belts are designed with a specialized structure that enhances their performance in high-speed and high-load applications. Unlike wrapped V-belts, raw edge belts have an exposed rubber edge that directly contacts the pulley, providing better grip and higher transmission capacity.

Classical Cogged V-belts
Section Top  Width Height Angle Belt Length Factor     Length    Standard Production Range
(mm) (mm) (degree) (mm) (mm)
ZX 10 6 40 La= Lp+16  Lp=Li+22  La=Li+38 Li 300~8000mm
AX 13 8 40 La= Lp+14  Lp=Li+36  La=Li+50 Li 300~8000mm
BX 17 11 40 La= Lp+26  Lp=Li+43  La=Li+69 Li 300~8000mm
CX 22 14 40 La= Lp+32  Lp=Li+56  La=Li+88 Li 300~8000mm
DX 32 19 40 La= Lp+40  Lp=Li+79  La=Li+119 Li 300~8000mm
